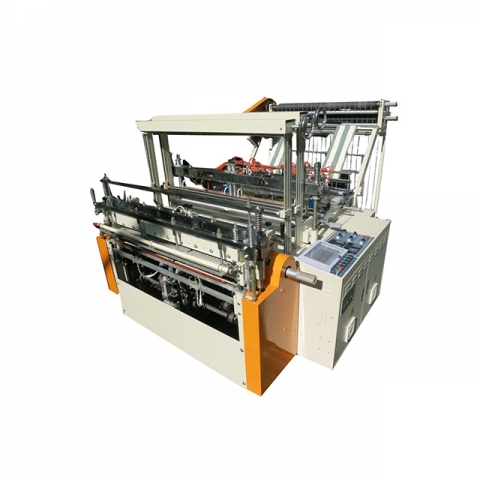

Two Servo-Controls Sealing and Cutting Bag Machine
Introduction
Main Uses
•This machine is suited for sealing and cutting tension free/tension bags 、bottom sealing bag(flat bag) 、T-shirt bag ,etc.
• This machine can produce simutaneously double-lane printing bags.
Main Features
•Servo motor controls length tolerance,ensures high efficiency and accuracy.
•Double servo-control device , this machine can produce simutaneously double-lane printing bags.
•Tension free adopting up and down heating device for sealing knife provideing superior straight accuracy for bottom sealing.
•Automatic electronic control. Using plugging type IC circuit for easy replacement.
•Using KT5 high-sensitivity electric sensor which can keep high accuracy.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•The machine will stop automatically when
(1)the bags become jammed or overlapped.
(2)temperature is too low.
(3)the film is in inaccurate position.
•High stability and continuous high speed producing to increase efficiency.
•This machine is suited for sealing and cutting tension free/tension bags 、bottom sealing bag(flat bag) 、T-shirt bag ,etc.
• This machine can produce simutaneously double-lane printing bags.
Main Features
•Servo motor controls length tolerance,ensures high efficiency and accuracy.
•Double servo-control device , this machine can produce simutaneously double-lane printing bags.
•Tension free adopting up and down heating device for sealing knife provideing superior straight accuracy for bottom sealing.
•Automatic electronic control. Using plugging type IC circuit for easy replacement.
•Using KT5 high-sensitivity electric sensor which can keep high accuracy.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•The machine will stop automatically when
(1)the bags become jammed or overlapped.
(2)temperature is too low.
(3)the film is in inaccurate position.
•High stability and continuous high speed producing to increase efficiency.
Service
-
Model JYDSC800 JYDSC1000 JYDSC1250 Max. Cutting Width 400mm 500mm 625mm Max. Cutting Length 10mm-5000mm 10mm-5000mm 10mm-5000mm Length Tolerance ±2mm ±2mm ±2mm Production rate(cycles / min) Single lane 10-130 / Double Lane 10-260 AC Driving Motor 2HP 2HP 2HP Servo Motor 1kw 1kw 1kw Power Required 9.3kw 10.7kw 12.2kw The above specifications are subject to change without prior notice
