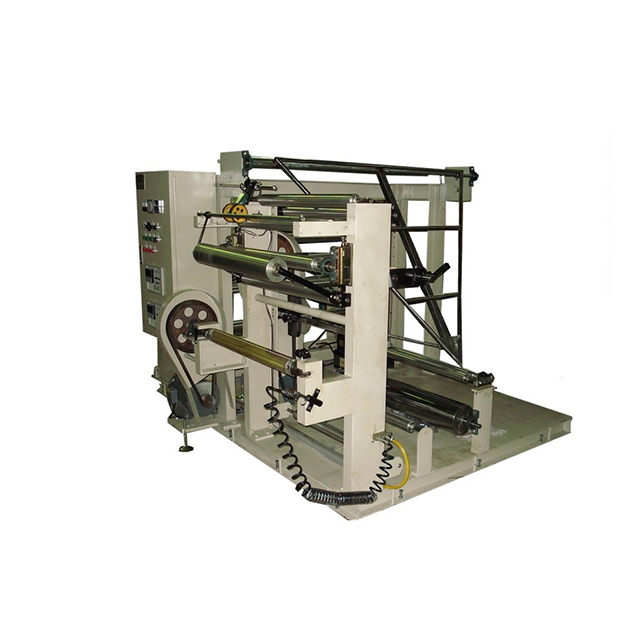

Automatic Triangle Stand Folding Machine
Introduction
Main Uses
This machine is designed for folding materials such as OPP 、LDPE、HDPE、CPP、PE、PP and nonwoven fabrics from single-layer to double-layer.
Main Features
•Folding single-layer into double-layer film.
•EPC automatic guided device.
•Out-feeding uses air shafts to convenient for fast unloading.
•Out-feeding uses the auto-tension control device.
•Electromagnetic clutch brakes.
•In-feeding uses the auto-tension control device.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•Automatic length calculator.
•Consumer can choose the AC motor or DC motor be your out-feeding motor.
•High stability and continuous high speed producing to increase efficiency.
This machine is designed for folding materials such as OPP 、LDPE、HDPE、CPP、PE、PP and nonwoven fabrics from single-layer to double-layer.
Main Features
•Folding single-layer into double-layer film.
•EPC automatic guided device.
•Out-feeding uses air shafts to convenient for fast unloading.
•Out-feeding uses the auto-tension control device.
•Electromagnetic clutch brakes.
•In-feeding uses the auto-tension control device.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•Automatic length calculator.
•Consumer can choose the AC motor or DC motor be your out-feeding motor.
•High stability and continuous high speed producing to increase efficiency.
Service
-
Model JYTF1000 JYTF1250 JYTF1500 Production rate 20-100m 20-100m 20-100m AC Driving Motor 2HP 3HP 3HP Power Required 4.3kw 5.1kw 6kw The above specifications are subject to change without prior notice
