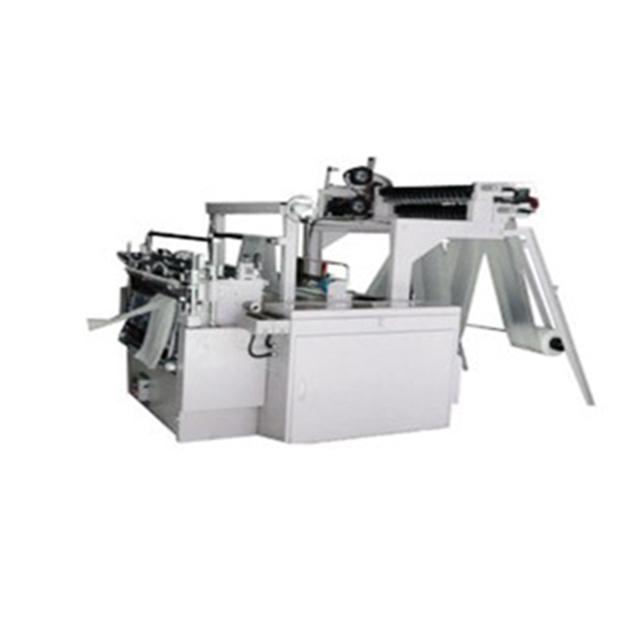

Servo-Control T-Type Bag Making Machine (Single-Lane or Double-Lane)
Introduction
Main Uses
This machine is designed for making T-shirt bags.
Main Features
•Servo motor controls length tolerance,ensures high efficiency and accuracy.
• Using automatic pneumatics and hydraulics type punching device to save the labor cost.
•Equipped with one electric sensor,this machine can produce single-lane printing bags/Equipped with two electric sensors,this machine can produce simultaneously double-lane printing bags.
•Adopting up and down heating device for sealing knife providing superior straight accuracy for bottom sealing.
•Using KT5 high-sensitivity electric sensor which can keep accuracy
•Automatic electronic control. Using plugging type IC circuit for easy replacement.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•The machine will stop automatically when
(1)the bags become jammed or overlapped.
(2)the film is in inaccurate position.
•High stability and continuous high speed producing to increase efficiency.
This machine is designed for making T-shirt bags.
Main Features
•Servo motor controls length tolerance,ensures high efficiency and accuracy.
• Using automatic pneumatics and hydraulics type punching device to save the labor cost.
•Equipped with one electric sensor,this machine can produce single-lane printing bags/Equipped with two electric sensors,this machine can produce simultaneously double-lane printing bags.
•Adopting up and down heating device for sealing knife providing superior straight accuracy for bottom sealing.
•Using KT5 high-sensitivity electric sensor which can keep accuracy
•Automatic electronic control. Using plugging type IC circuit for easy replacement.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•The machine will stop automatically when
(1)the bags become jammed or overlapped.
(2)the film is in inaccurate position.
•High stability and continuous high speed producing to increase efficiency.
Service
-
Model JYTM650 JYTM800 JYTM1000 Max. Cutting Width 650mm 800mm 1000mm Max. Cutting Length 10mm-2000mm 10mm-2000mm 10mm-2000mm Thickness 0.02mm-0.08mm 0.02mm-0.08mm 0.02mm-0.08mm Length Tolerance ±1mm ±1mm ±1mm Production rate(cycles / min) 20-130 Double-lane 20-260 Double-lane 20-260 AC Driving Motor 1HP 2HP 2HP Servo Motor 1.3kw 2kw 2kw Power Required 5.5kw 7.6kw 9kw The above specifications are subject to change without prior notice
