Product / 產品介紹

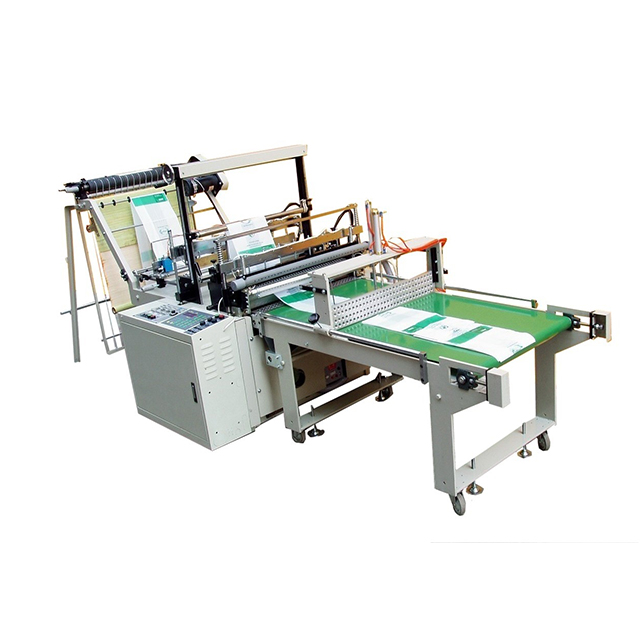

Servo-Control Sealing and Cutting Bag Machine for Thin and Thick Bag
Introduction
Main Uses
This machine is suited for cutting and sealing thin and thick bags such as PP/PE bag 、fertilizer bag、salt bag、plastic bag、sugar bag 、rice bag ,etc.
Main Features
•Servo motor controls length tolerance,ensures high efficiency and accuracy.
•Tension free adopting up and down heating device for sealing knife provideing superior straight accuracy for bottom sealing.
•Tension-free device to upgrade sealing security .
•Using KT5 high-sensitivity electric sensor which can keep high accuracy.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•The machine will stop automatically when
(1)the bags become jammed or overlapped
(2)temperature is too low.(3)the film is in inaccurate position.
•High stability and continuous high speed producing to increase efficiency.
Optional Equipment
●Conveyor
This machine is suited for cutting and sealing thin and thick bags such as PP/PE bag 、fertilizer bag、salt bag、plastic bag、sugar bag 、rice bag ,etc.
Main Features
•Servo motor controls length tolerance,ensures high efficiency and accuracy.
•Tension free adopting up and down heating device for sealing knife provideing superior straight accuracy for bottom sealing.
•Tension-free device to upgrade sealing security .
•Using KT5 high-sensitivity electric sensor which can keep high accuracy.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•The machine will stop automatically when
(1)the bags become jammed or overlapped
(2)temperature is too low.(3)the film is in inaccurate position.
•High stability and continuous high speed producing to increase efficiency.
Optional Equipment
●Conveyor
Service
-
Model JYSCT650 JYSCT800 JYSCT1000 JYSCT1250 JYSCT1500 JYSCT2000 JYSCT2500 Type Single Single/Double lane Single/Double lane Single/Double lane Single/Double lane Single/Double lane Single/Double lane Max. Cutting Width 600mm 750mm 950mm 1200mm 1450mm 1950mm 2450mm Max. Cutting Length 10mm-5000mm 710mm-5000mm 10mm-5000mm 10mm-5000mm 10mm-5000mm 10mm-5000mm 10mm-5000mm Thickness 0.4mm 0.4mm 0.4mm 0.4mm 0.4mm 0.4mm 0.4mm Length Tolerance ±2mm ±2mm ±2mm ±2mm ±2mm ±2mm ±2mm Production rate
(cycles / min)20-150 20-150 20-130 20-100 Customer's requirement. AC Driving Motor 1HP 1HP 2HP 2HP Customer's requirement. Servo Motor 1kw 1kw 2kw 2kw 3kw 3kw 3kw Heater Capacity 2.1kw 2.1kw 3kw 3.5kw 3.3kw 4kw 5.5kw Power Required 6.5kw 7.1kw 8.7kw 10.3kw 12.6kw 14kw 16.2kw The above specifications are subject to change without prior notice
