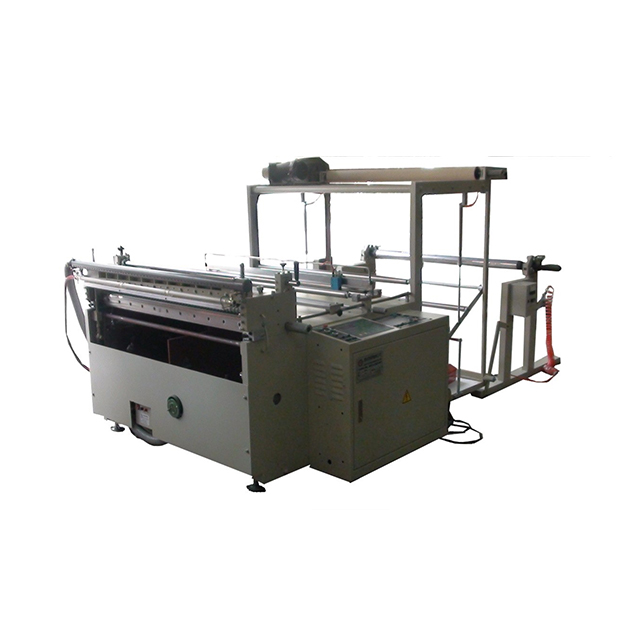

Micro Computer Cutting Bag Machine
Introduction
Main Uses
This machine is suited for cutting plastic sheet such as leather, paper, self-adhesive trade mark label, OPP, Copper Foil, PVC chip, Foam wrap , Glass fiber board, EPE Air Bubble wrap, PCB board, etc.
Main Features
•Servo motor controls length tolerance,ensures high efficiency and accuracy.
•Total quality management to ensure high quality products to meet customer needs.
•Automatic electronic control. Using plugging type IC circuit for easy replacement.
•Using KT5 high-sensitivity electric sensor which can keep high accuracy.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•The machine will stop automatically when
(1)the bags become jammed or overlapped
(2) the film is in inaccurate position.
•High stability and continuous high speed producing to increase efficiency.
Optional Equipment
●Punching Device ●Brakes
This machine is suited for cutting plastic sheet such as leather, paper, self-adhesive trade mark label, OPP, Copper Foil, PVC chip, Foam wrap , Glass fiber board, EPE Air Bubble wrap, PCB board, etc.
Main Features
•Servo motor controls length tolerance,ensures high efficiency and accuracy.
•Total quality management to ensure high quality products to meet customer needs.
•Automatic electronic control. Using plugging type IC circuit for easy replacement.
•Using KT5 high-sensitivity electric sensor which can keep high accuracy.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•The machine will stop automatically when
(1)the bags become jammed or overlapped
(2) the film is in inaccurate position.
•High stability and continuous high speed producing to increase efficiency.
Optional Equipment
●Punching Device ●Brakes
Service
-
Model JYMCC650 JYMCC800 JYMCC1000 JYMCC1250 JYMCC1500 Max. Cutting Width 650mm 800mm 1000mm 1250mm 1500mm Max. Cutting Length 10mm-9999mm 10mm-9999mm 10mm-9999mm 10mm-9999mm 10mm-9999mm Length Tolerance ±1mm ±1mm ±1mm ±1mm ±1mm Production rate(cycles / min) 10-150 10-150 10-120 10-80 10-80 AC Driving Motor 1HP 1HP 2HP 2HP 2HP Servo Motor 1kw 1kw 1.3kw 2kw 2kw Power Required 2.3kw 2.3kw 5kw 6.5kw 7.2kw The above specifications are subject to change without prior notice
