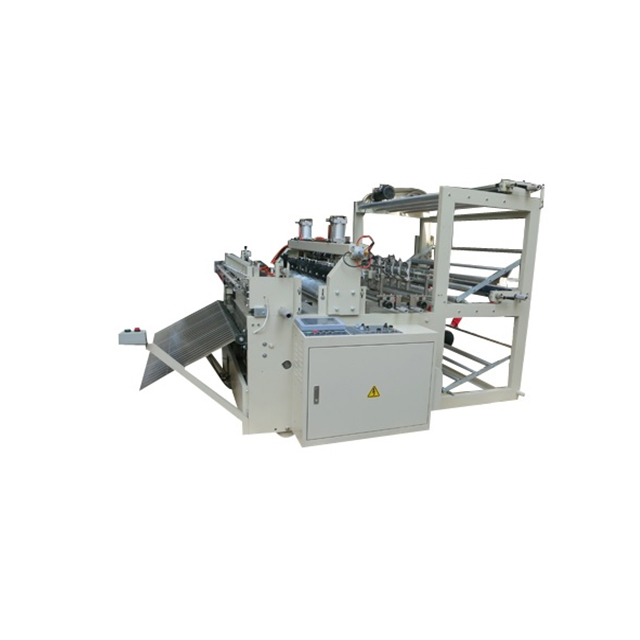

Servo-Control Cutting Bag Making Machine(Including Slitting Function)
Introduction
Main Uses
Designed for cutting and slitting materials such as PE air bubble wrap 、EPE foam weap,etc.
Main Features
•Servo motor controls length tolerance,ensures high efficiency and accuracy.
•Total quality management to ensure high quality products to meet customer needs.
•Automatic slitting device ,cutting and slitting can finish at the same time.
•Automatic electronic control. Using plugging type IC circuit for easy replacement.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•Products will be collected by cold needles device automatically.
•The machine will stop automatically when the bags become jammed or overlapped.
•High stability and continuous high speed producing to increase efficiency.
Optional Equipment
●Electric Sensor ●Punching Device
Designed for cutting and slitting materials such as PE air bubble wrap 、EPE foam weap,etc.
Main Features
•Servo motor controls length tolerance,ensures high efficiency and accuracy.
•Total quality management to ensure high quality products to meet customer needs.
•Automatic slitting device ,cutting and slitting can finish at the same time.
•Automatic electronic control. Using plugging type IC circuit for easy replacement.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•Products will be collected by cold needles device automatically.
•The machine will stop automatically when the bags become jammed or overlapped.
•High stability and continuous high speed producing to increase efficiency.
Optional Equipment
●Electric Sensor ●Punching Device
Service
-
Model JYCM800 JYCM1000 JYCM1500 JYCM2000 Max. Cutting Width 750mm 950mm 1450mm 1950mm Max. Cutting Length 70 mm-3500mm 70 mm-3500mm 80mm-3500mm 80mm-3500mm Thickness 0.5-10mm 0.5-10mm 0.5-10mm 0.5-10mm Length Tolerance ±5mm ±5mm ±5mm ±5mm Production rate(cycles / min) 20-150 20-150 20-80 20-80 AC Driving Motor 2HP 2HP 3HP 5HP Servo Motor 1.8w 1.8w 3kw 3kw Power Required 5.8kw 7kw 10kw 16kw The above specifications are subject to change without prior notice
