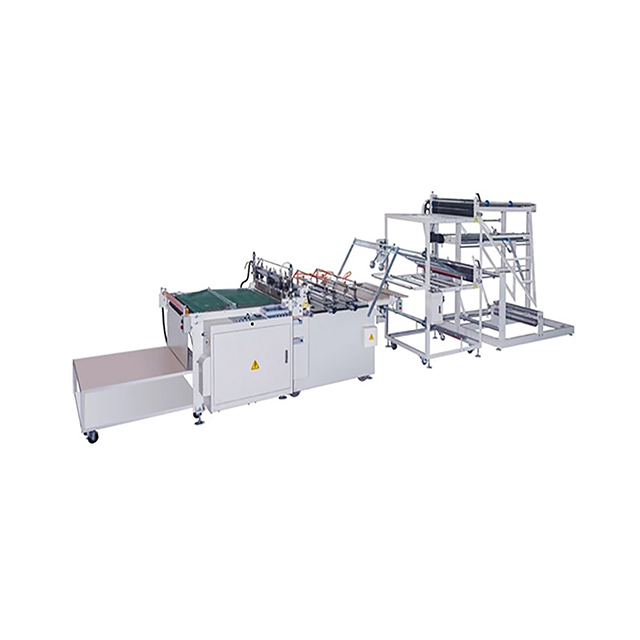

Servo-Control Two-Sides Bubble Wrap Bag Making Machine
Introduction
Main Uses
Automatic sealing and cutting machine, especially designed for packaging materials such as PE air bubble wrap and EPE foam,etc.
Main Features
•Servo motor controls length tolerance,ensures high efficiency and accuracy.
•Total quality management to ensure high quality products to meet customer needs.
•Automatic electronic control. Using plugging type IC circuit for easy replacement.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•Out-feeding conveyor belt is driven by DC motor.
•The machine will stop automatically when temperature is too low.
•High stability and continuous high speed producing to increase efficiency.
Optional Equipment
●Electric Sensor ●Punching Device
●Customer Needs
Automatic sealing and cutting machine, especially designed for packaging materials such as PE air bubble wrap and EPE foam,etc.
Main Features
•Servo motor controls length tolerance,ensures high efficiency and accuracy.
•Total quality management to ensure high quality products to meet customer needs.
•Automatic electronic control. Using plugging type IC circuit for easy replacement.
•Main machine is controlled and driven by AC motor with inverter,no adjustment is required and easy to operate.
•Out-feeding conveyor belt is driven by DC motor.
•The machine will stop automatically when temperature is too low.
•High stability and continuous high speed producing to increase efficiency.
Optional Equipment
●Electric Sensor ●Punching Device
●Customer Needs
Service
-
Model JYAB800 JYAB1000 JYAB1250 JYAB1500 JYAB2000 Max. Cutting Width 750mm 950mm 1200mm 1450mm 1950mm Max. Cutting Length 70 mm-4000mm 70 mm-4000mm 80mm-4000mm 80mm-4000mm 80mm-4000mm Length Tolerance ±3mm ±3mm ±3mm ±3mm ±3mm Production rate(cycles / min) 20-150 20-150 20-120 20-100 20-70 AC Driving Motor 2HP 2HP 2HP 2HP 3HP Servo Motor 1.3kw 1.8kw 1.8kw 3kw 3kw Heater Capacity 3.6kw 4kw 5.2kw 6kw 8.3kw Power Required 8kw 9.5kw 11kw 13.5kw 16kw The above specifications are subject to change without prior notice
